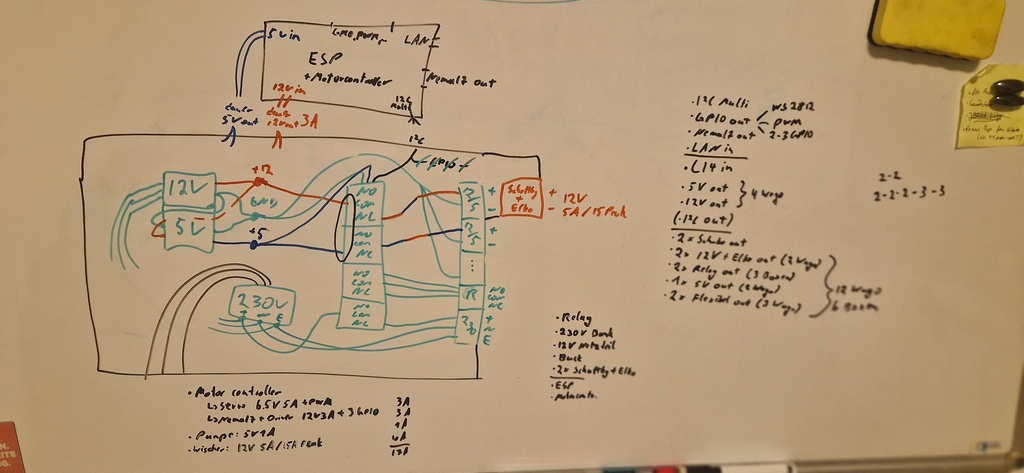

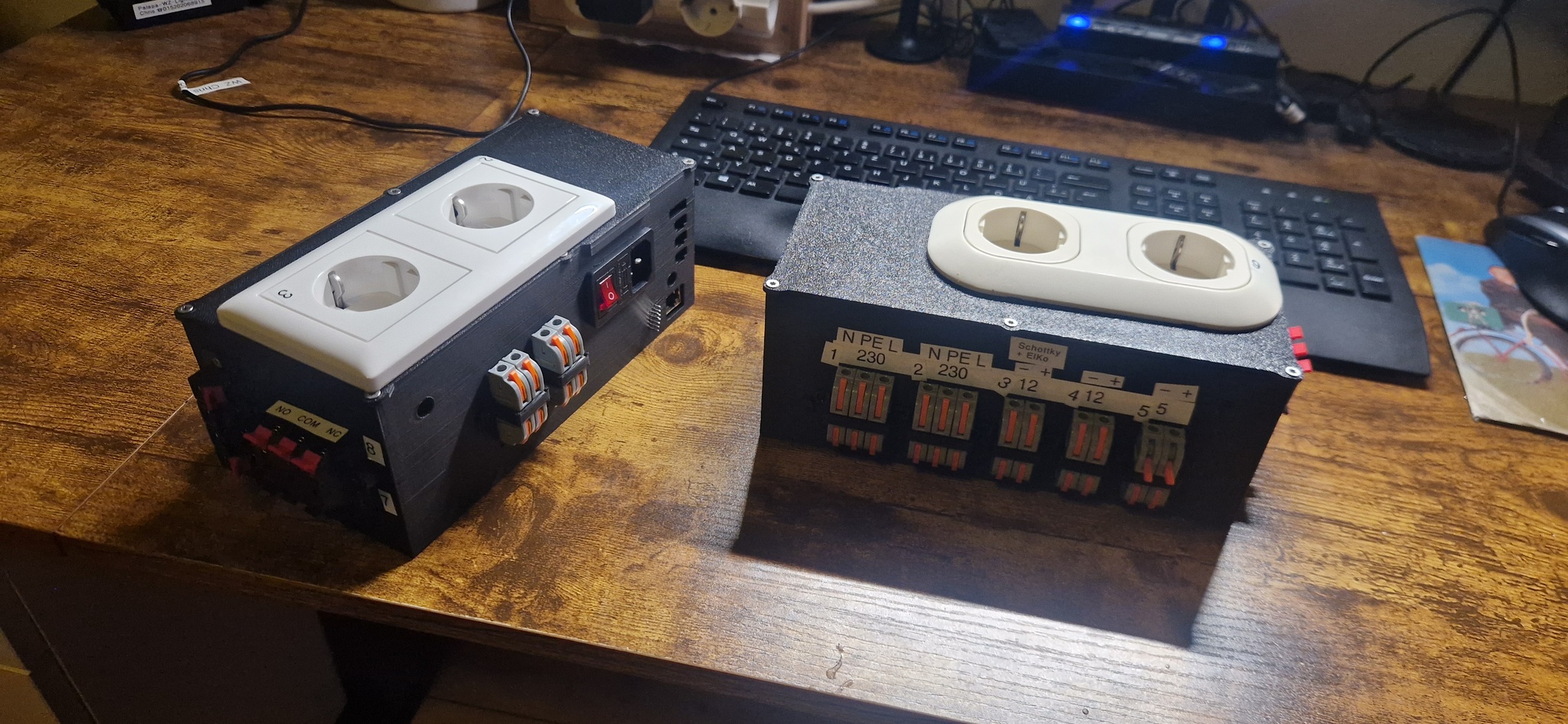

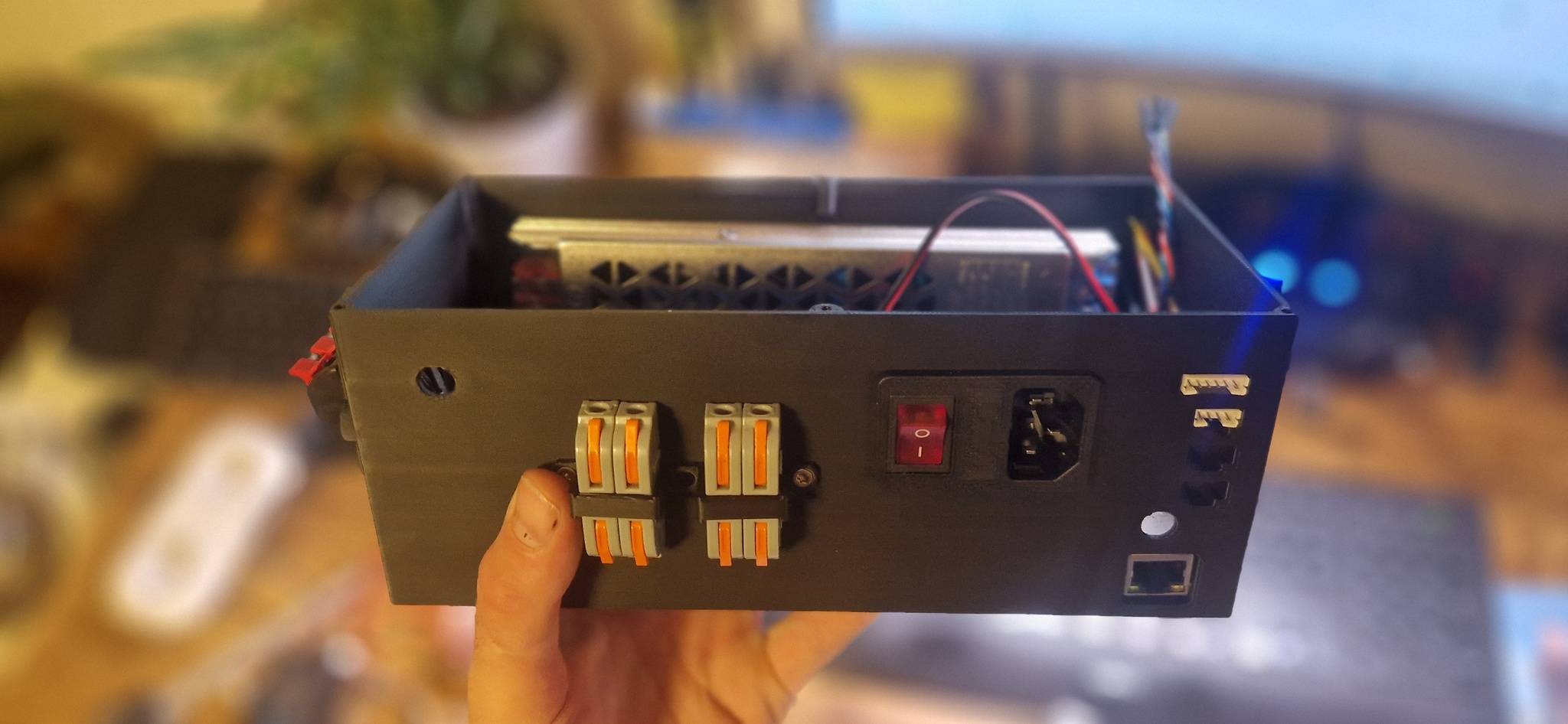

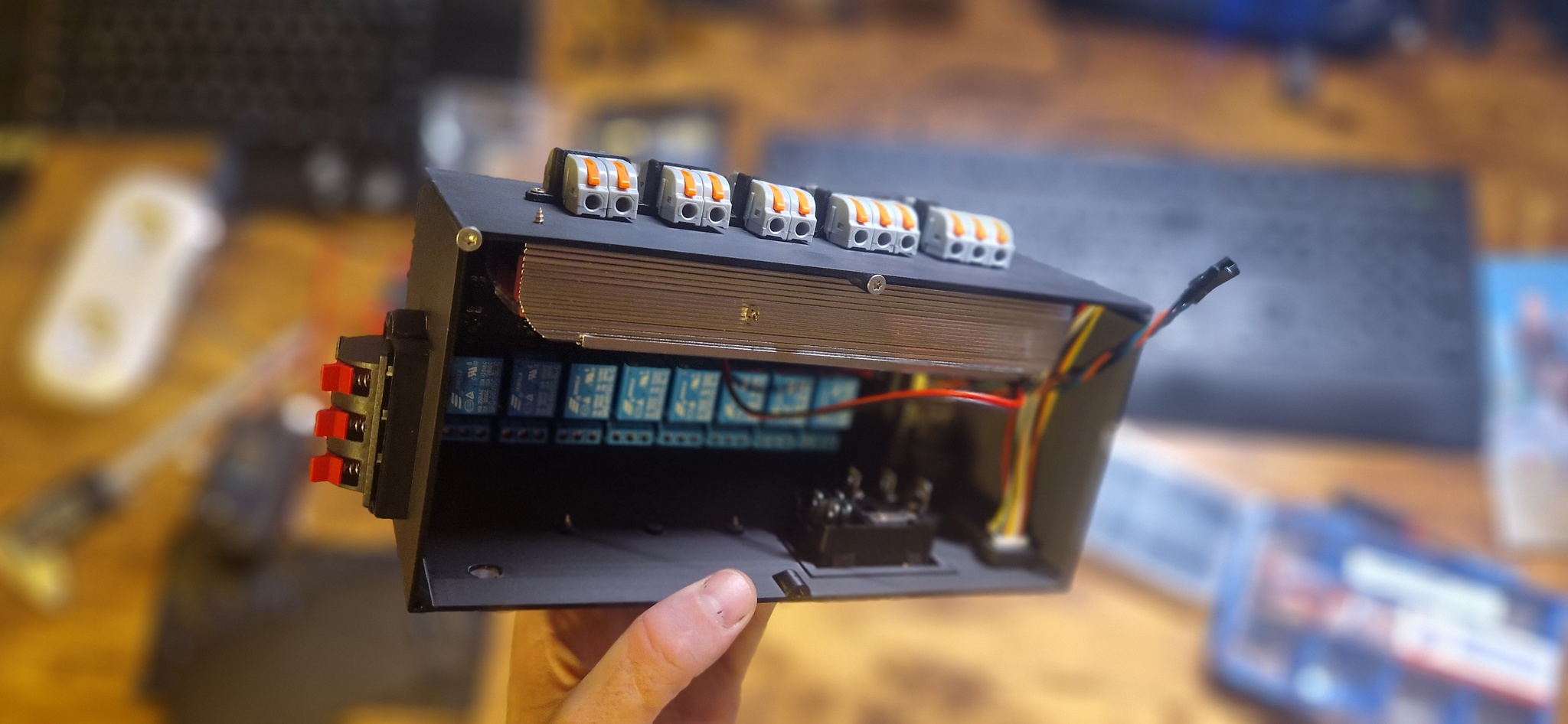

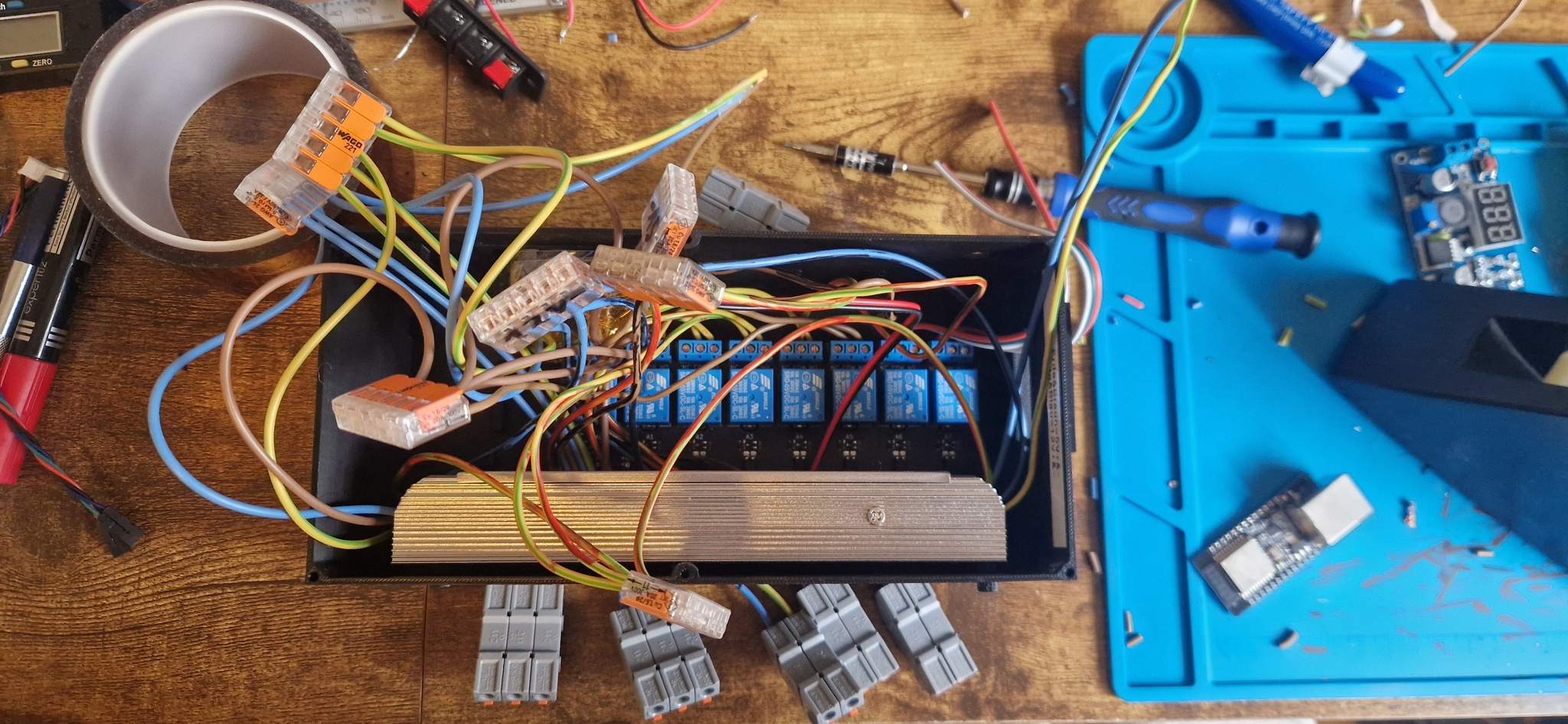

Many of my projects need mixed outputs (mains, low-voltage, and logic) that can be triggered reliably over the network. To avoid one-off hacks, I built a standard relay box: PSU and wiring inside, Ethernet on the outside, speaking OSC and Art-Net. Controlled by good and secure code, allowing them to be easily used and hacked.
Features
- Ethernet-connected
- Outputs:
- 2x 230V
- 3x 12V (1x including Schottky & Capacitor for motors)
- 1x 5V
- 2x Relays
- Protocols: OSC & Art-Net
- Also 4x Button-Inputs, broadcasting a custom OSC-Message
- Control Code that
- sends a heartbeat regularly & on boot
- can ensure that a relay cannot be triggered for longer than a given time, written into permanent storage
- allows setting up Art-Net Universe & Start-Address
/*****************************************************************************************************************
* Relay‑Board “ultimate” firmware – WT32‑ETH01 (ESP32)
*
* • OSC Heartbeat every 9s → /heartbeat (MAC, relay bitmask, init‑flag, maxOn, windowLen, windowQuota, runtimeTotal)
* • MAC‑based auto‑configuration
* ◦ unknown MAC ⇒ DHCP fallback + broadcast heartbeat
* • OSC runtime API:
* /relay/control i relay, i cmd, i ms?
* /relay/setup i relay, i maxOn, i winLen, i winQ, i dmxAddr
* /relay/reset i relay, i newCounter
* /heartbeat/request
* /artnet/config i universe, i startAddr
* /storage/clear
* • Art‑Net listener (universe & start address configurable)
* DMX values: 0 off · 1‑127 on N×100 ms · 128 toggle · 129‑254 off (N‑128)×100 ms 255 on (indef.)
* • Safety, statistics, NVS persistence, mDNS, discovery probe …
*****************************************************************************************************************/

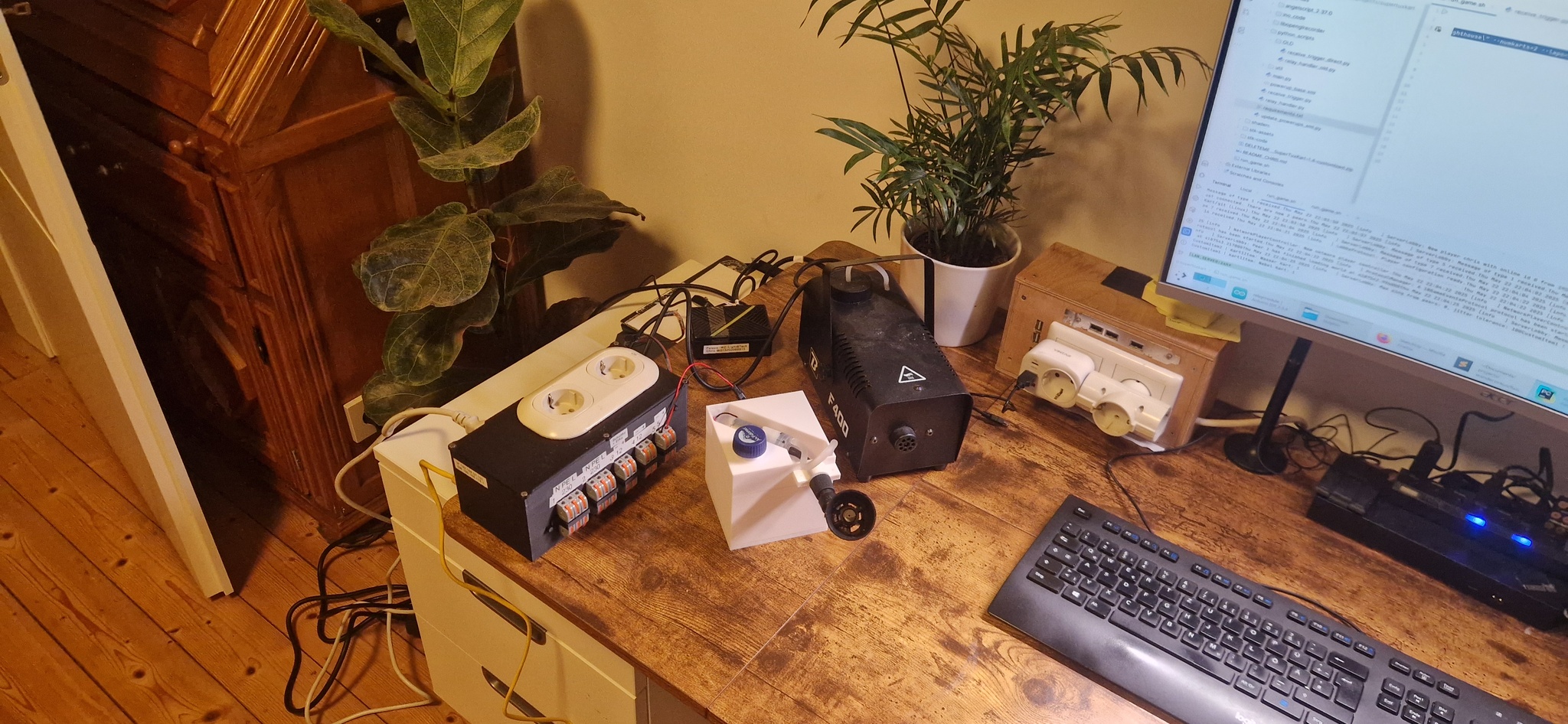

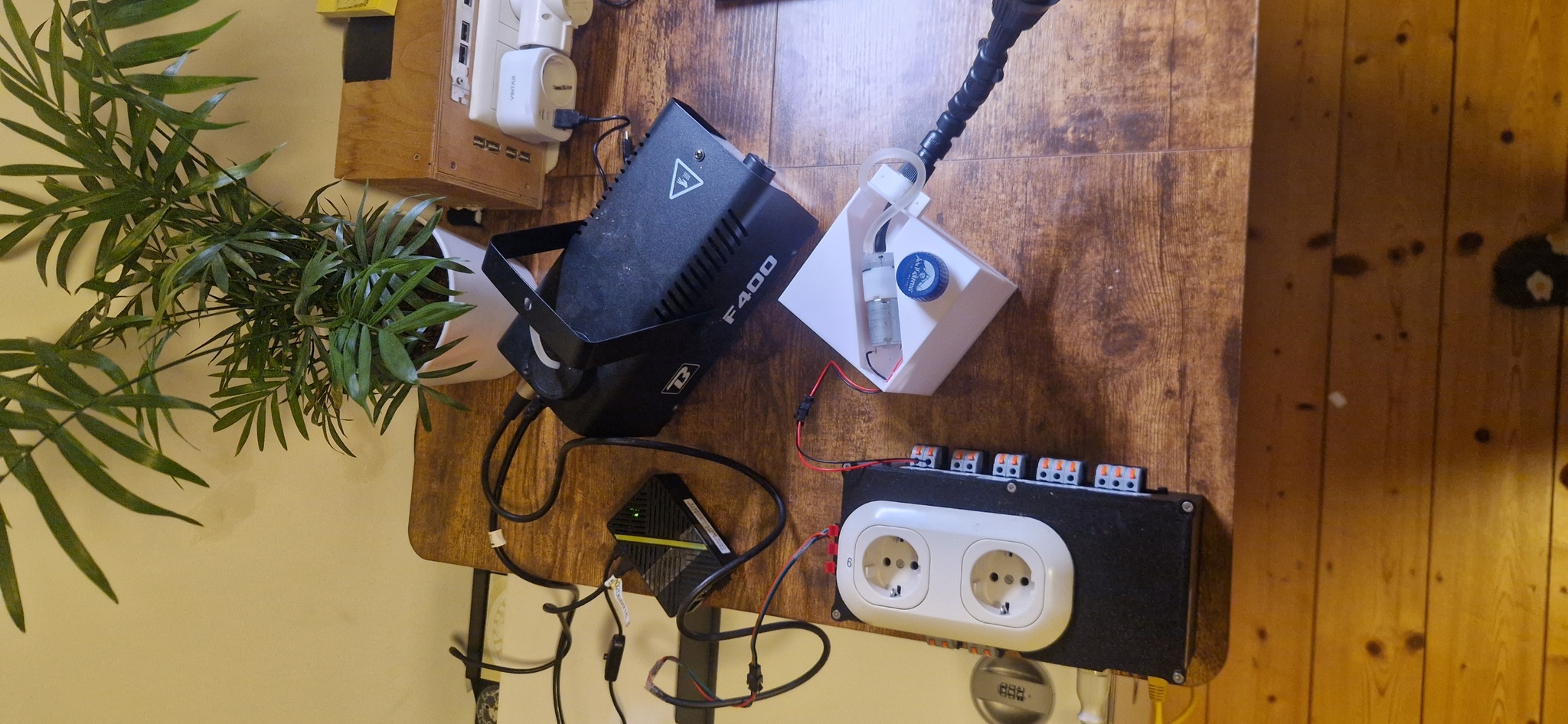

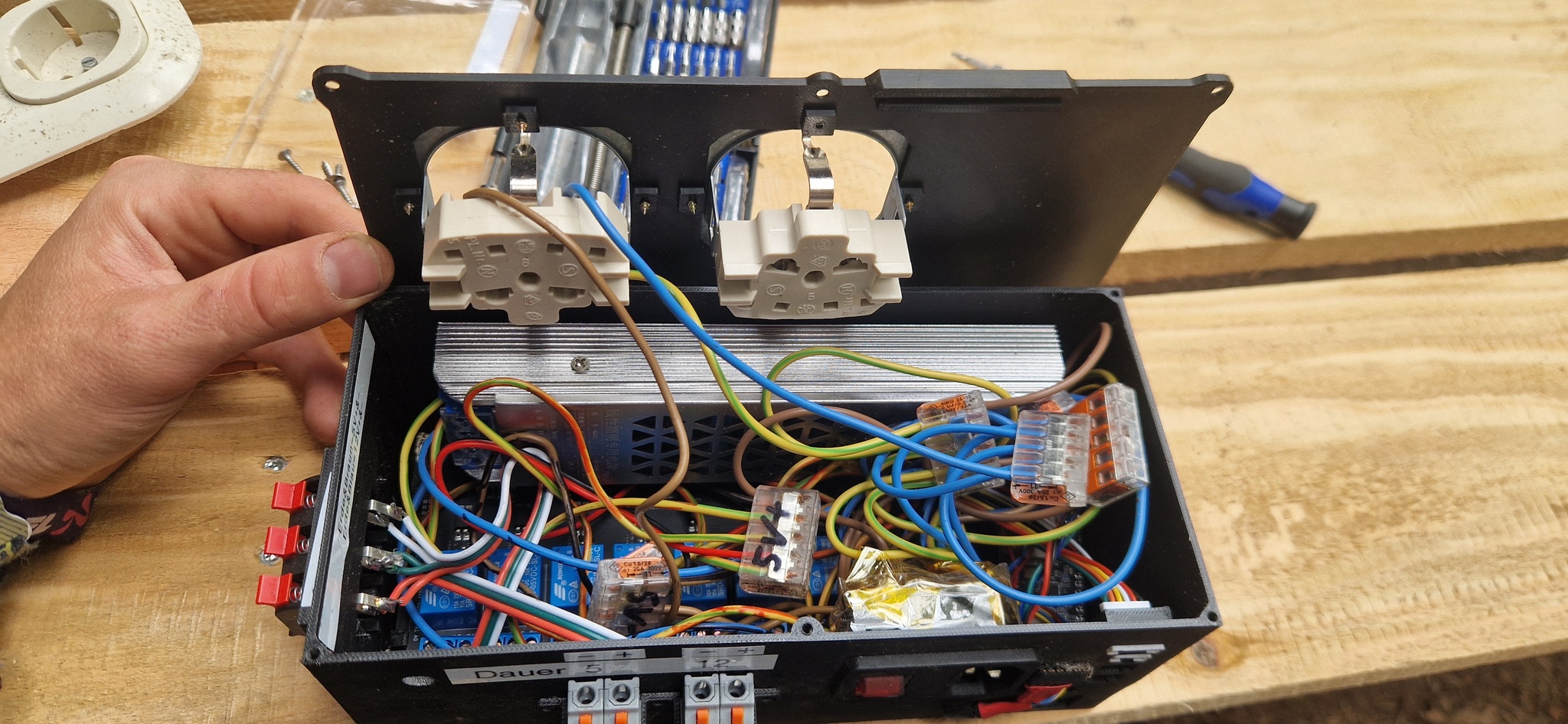

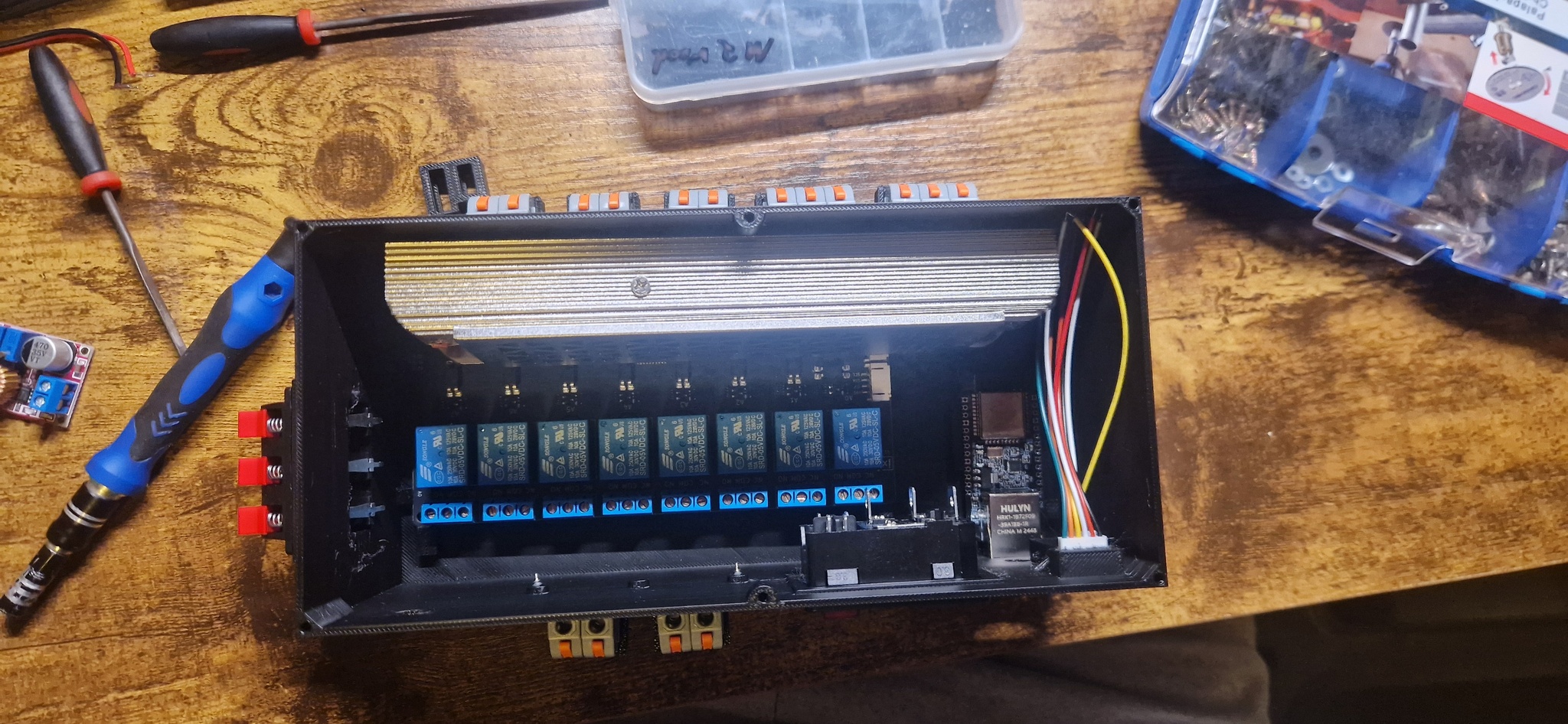

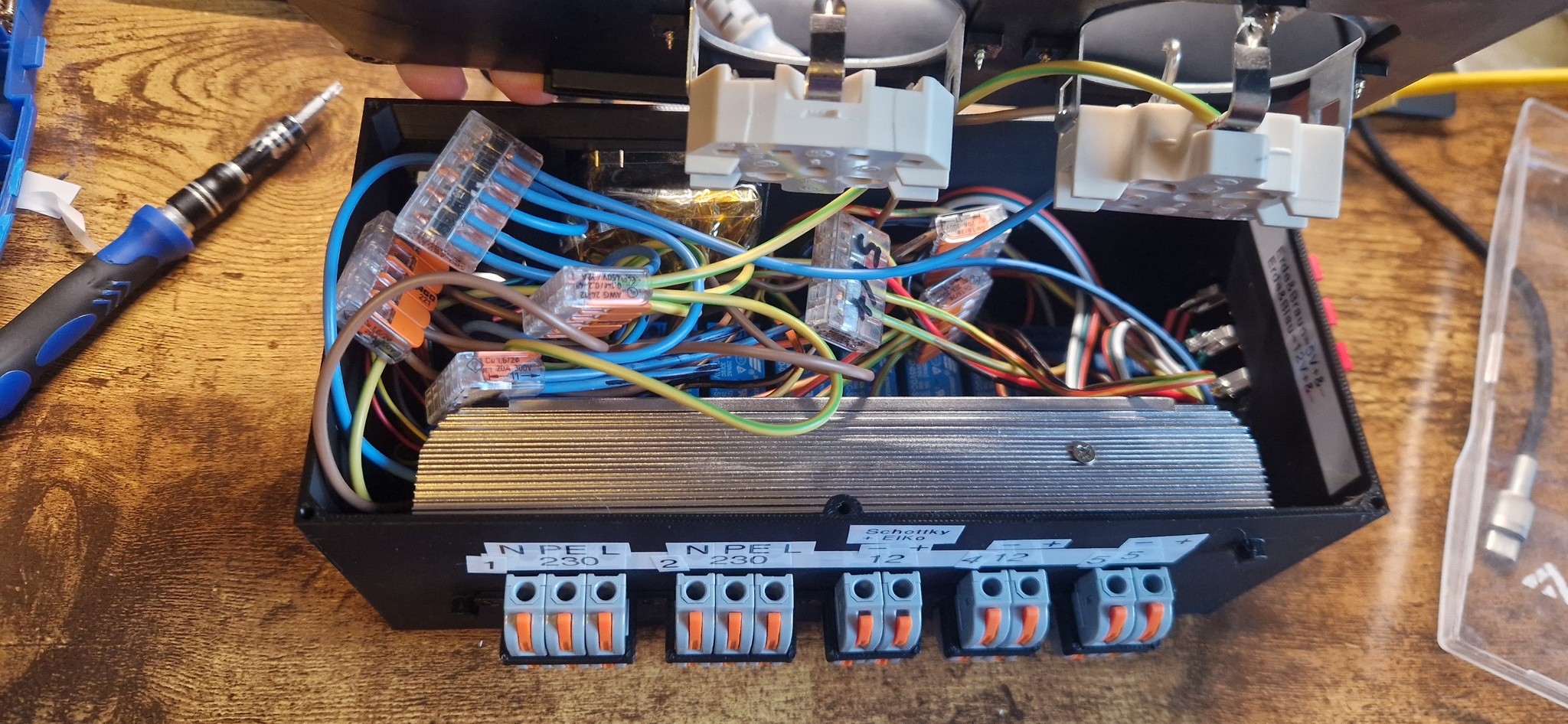

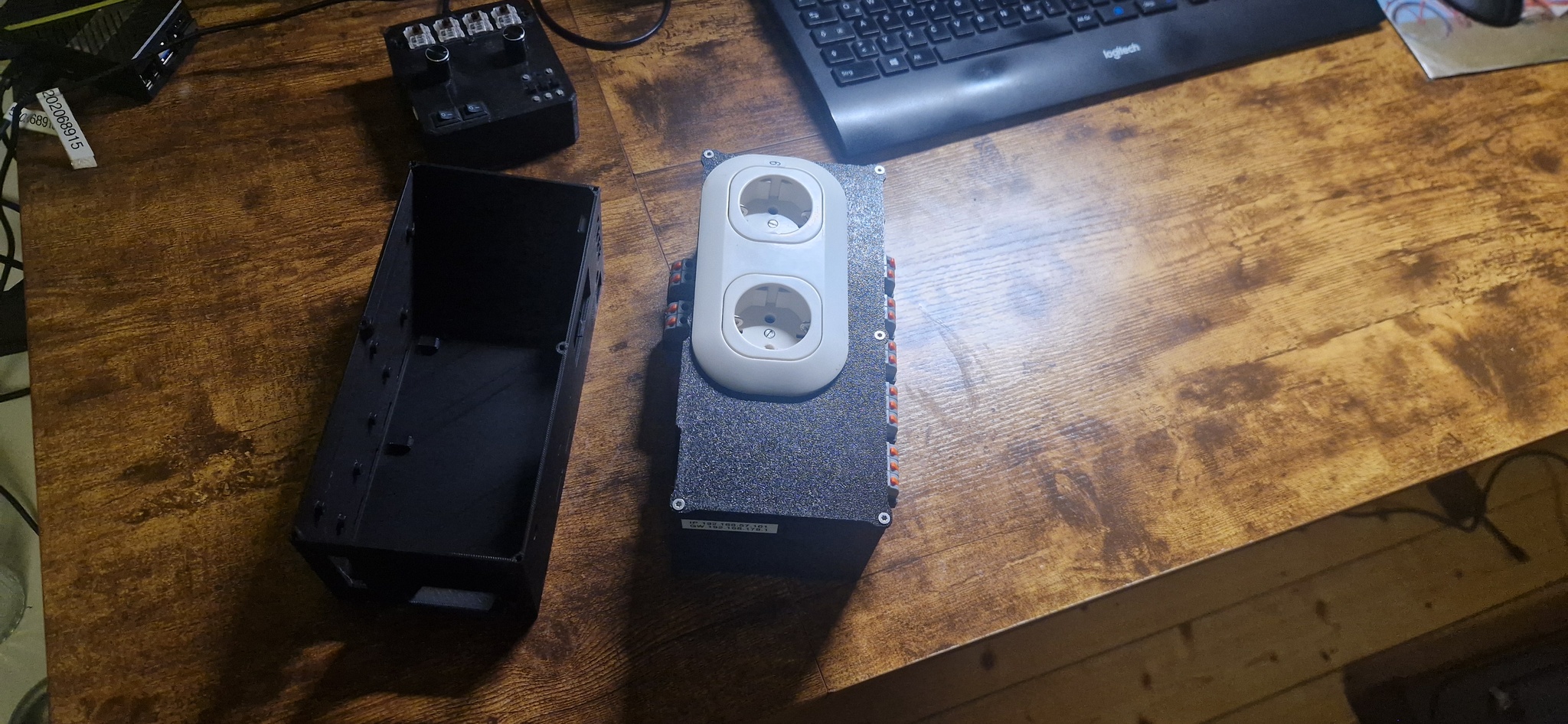

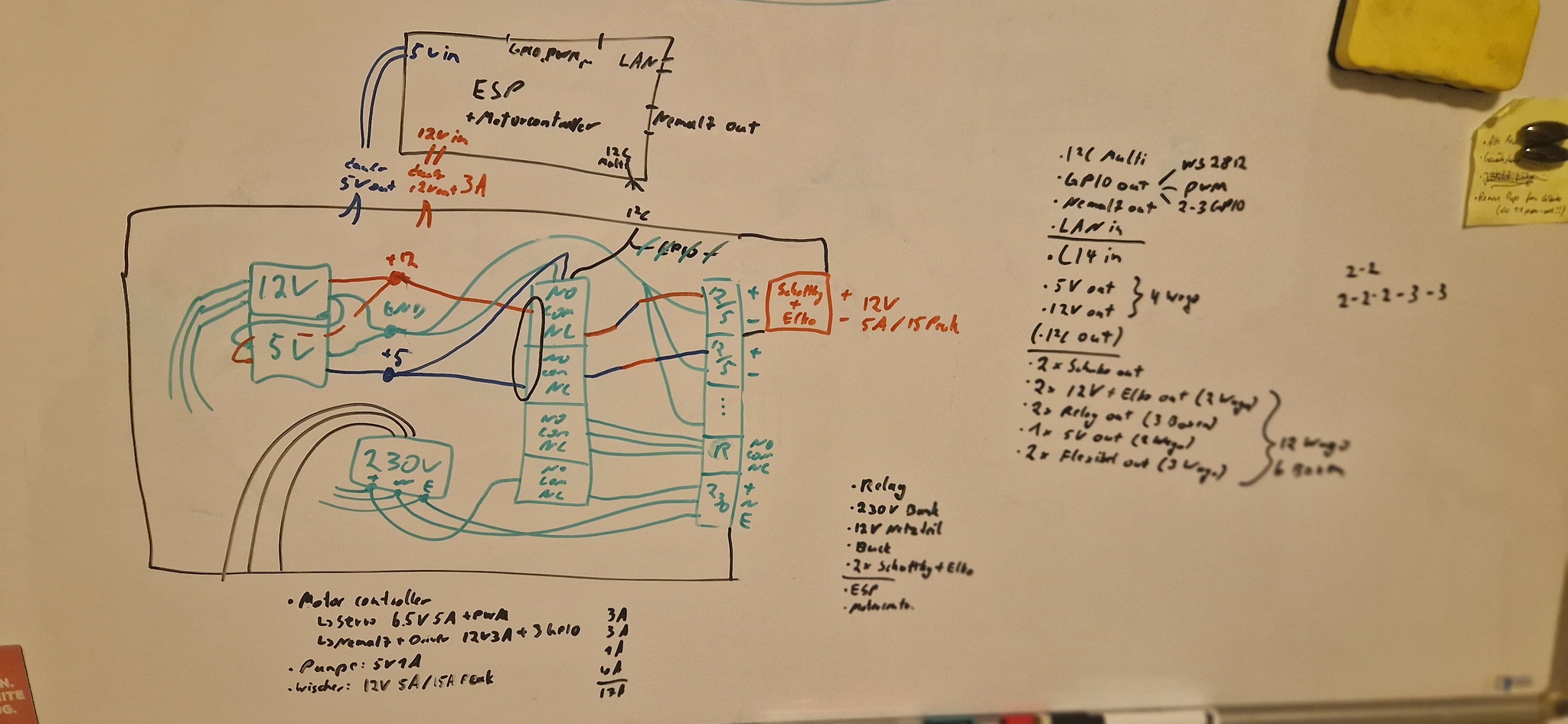

Images
Get one yourself!
I plan on selling these eventually over this website or Etsy. For now, if you want to buy one, get in touch with me!
